FUNMAT PRO 310 NEO
FUNMAT PRO 310 NEO高产能·高腔温·多材料
观看视频

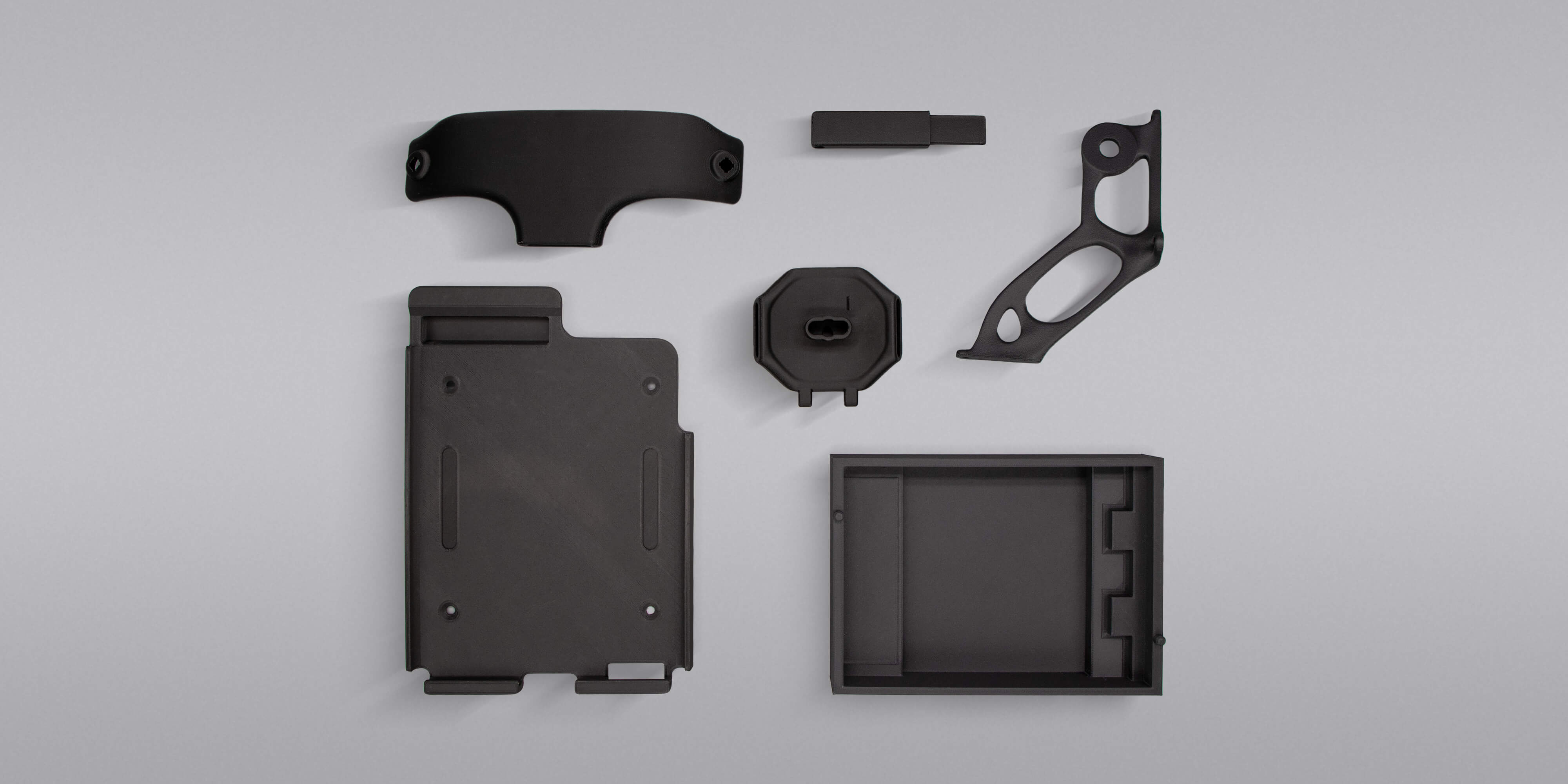

Ideal for Small-Batch Manufacturing in Industrial Applications
Offers 12+ high-speed material processing options, achieving a productivity range of 500-1000g/day.

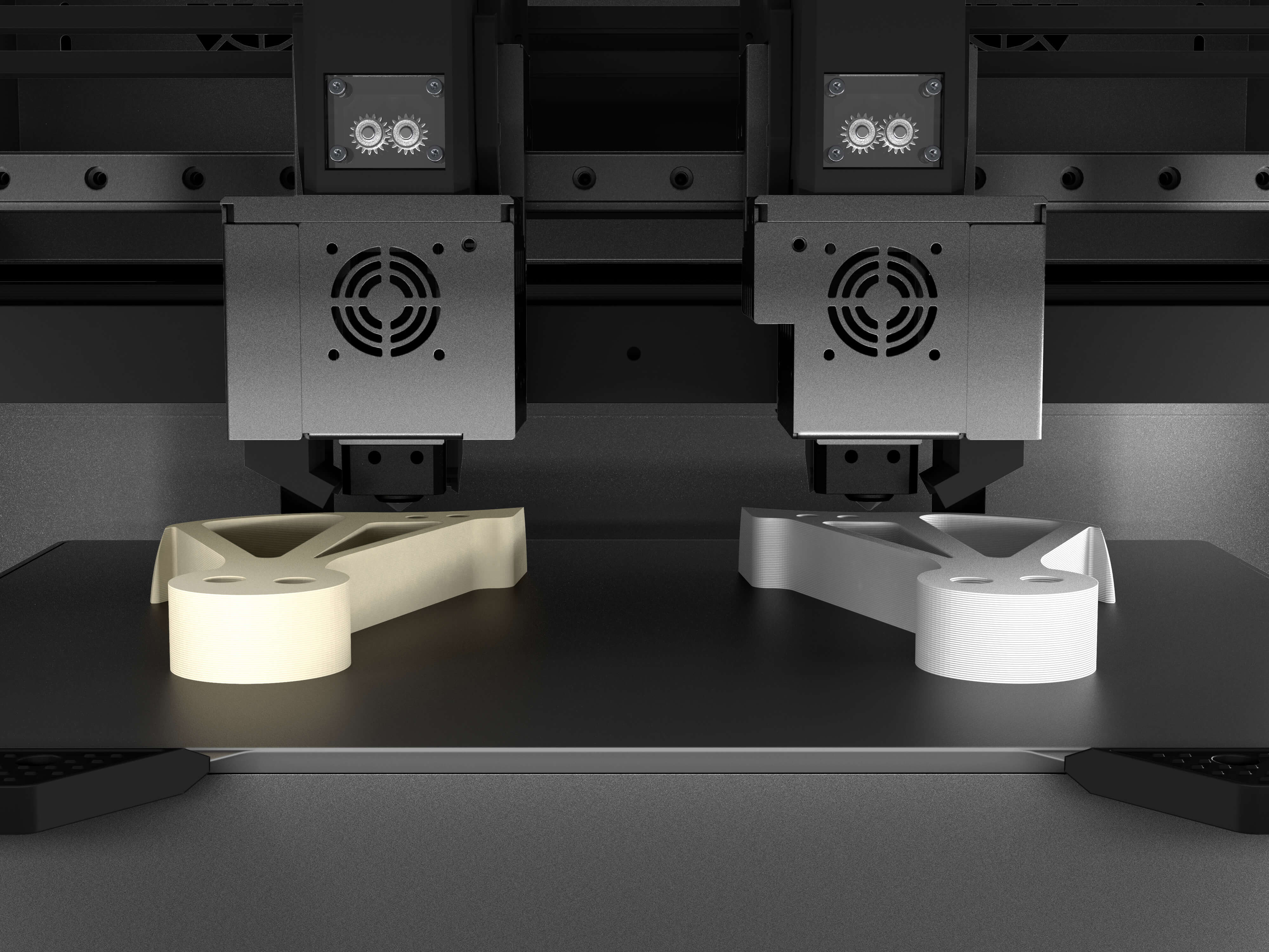

Doubles capacity for duplicate and mirror mode, achieving over 1kg/day.
Maintains perfect control over print quality and precision at high speeds, delivering reliable continuous production to meet industrial application demands.
Powered by NXP's advanced MCU, this mainboard provides the robust computing power needed for high-speed printing.
Intelligent Speed Prediction: Predicts printing speeds based on path complexity to maintain exceptional surface quality even with intricate feature structures.
Flow Compensation Technology: Dynamically adjusts the material extrusion rate to prevent surface defects during high-speed printing.

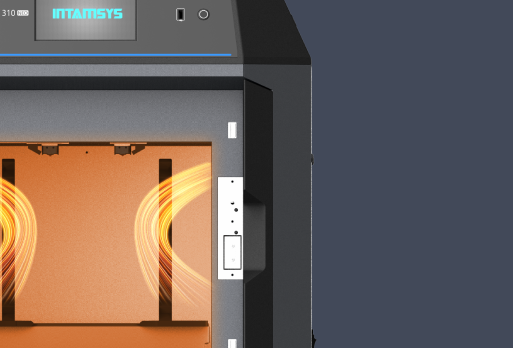

The active heated chamber maintains a consistent temperature up to 100°C, optimizing material properties and mechanical strength for a wide array of engineering plastics.

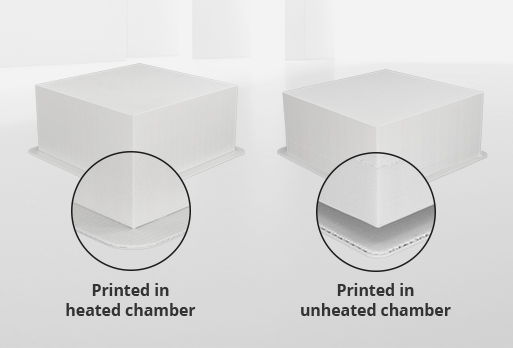

Reduce thermal deformation and shrinkage of the model during the printing process, avoiding warping to achieve large-format (305 x 260 x 260 mm) printing.

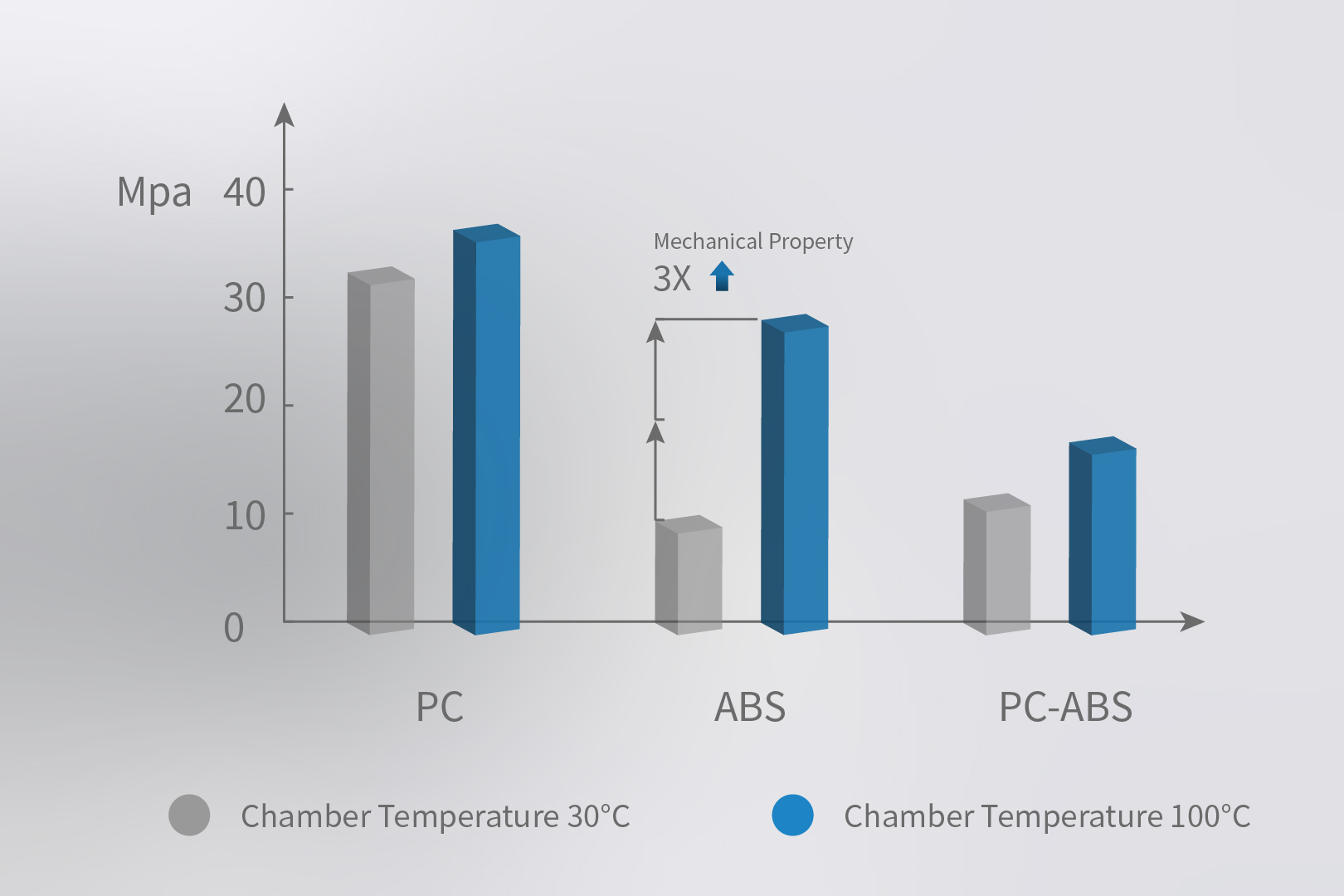

Heated chamber at 100°C prevents warping, delamination, and deformation in long-edge PC prints over 150 mm.

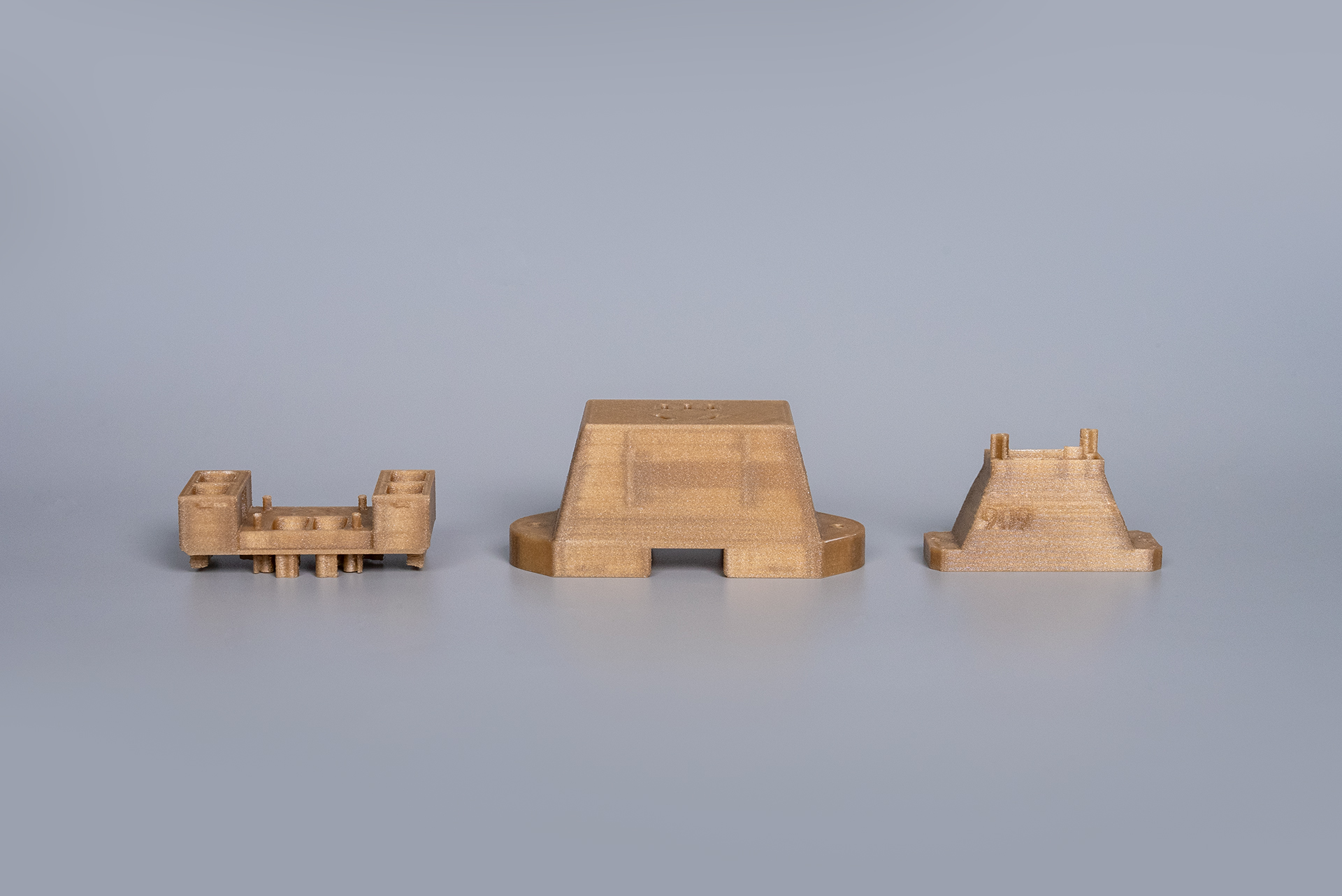

High-temperature semi-crystalline structures provide enhanced strength and toughness.
Consistent chamber temperatures ensure consistent mechanical performance.

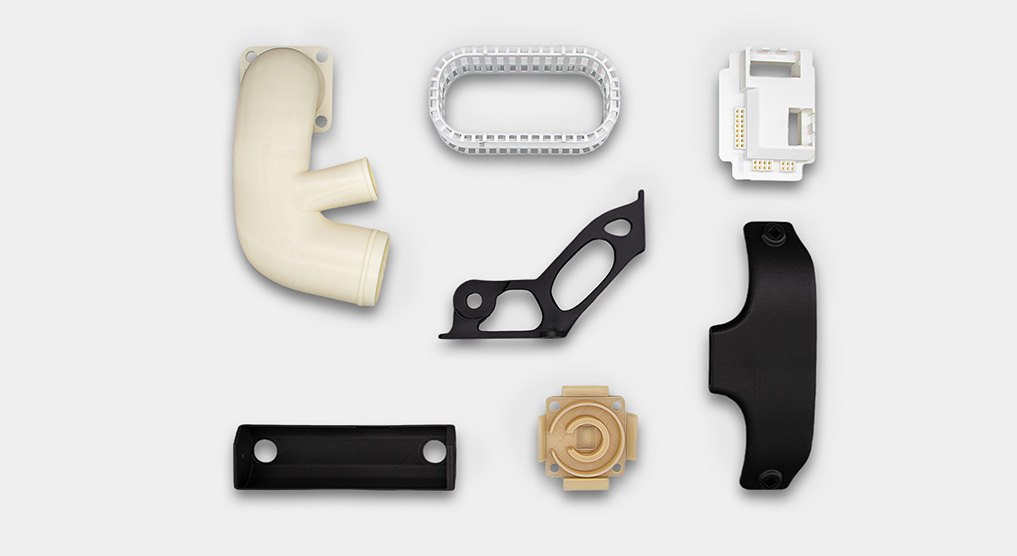

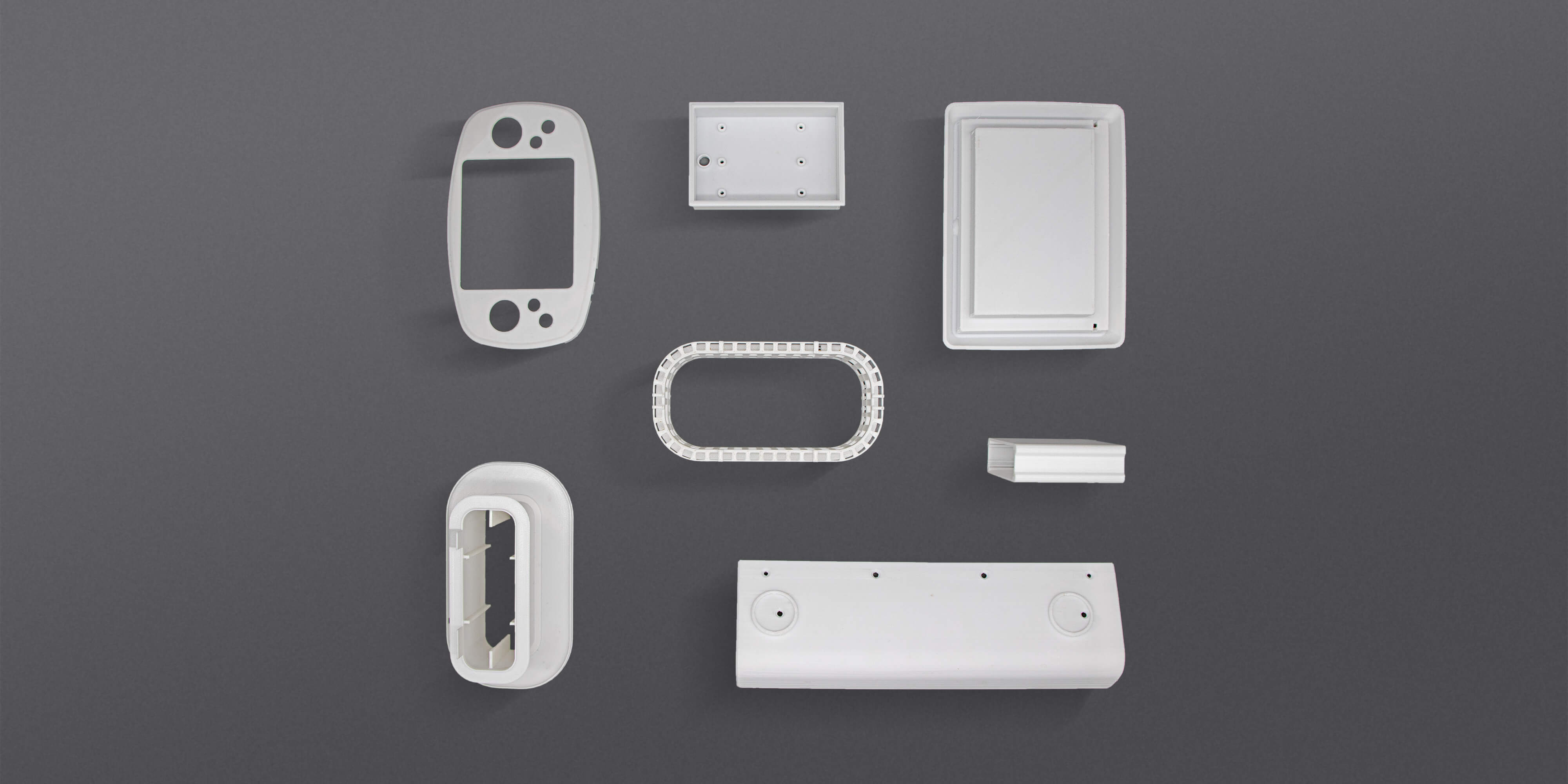

高质量打印高性能材料、工程材料、柔性材料等多种材料
High-Performance Thermoplastics: PPS, PPS-CF/GF
Engineering Thermoplastics: PPA-CF/GF, PC, PC-FR, PC/PBT, ABS-HS, PA12-CF, PC/ABS, ABS+, PA6/66, PA6-CF
Flexible Materials: TPU95A
Basic Material: PLA
Optimal Impact Resistance
Good Mechanical Strength
Resistant to High Temperatures
1/10 the moisture absorption of standard PA6
Low friction, self-lubricating, and highly wear-resistant
Excellent dimensional stability and surface quality
High mechanical strength
High heat resistance with good thermal stability
Resistant to chemicals, flame-retardant, and excellent electrical properties
Shore Hardness 95A
Excellent printing performance
Superior durability, with a tensile length that stretches over 3 times without breaking

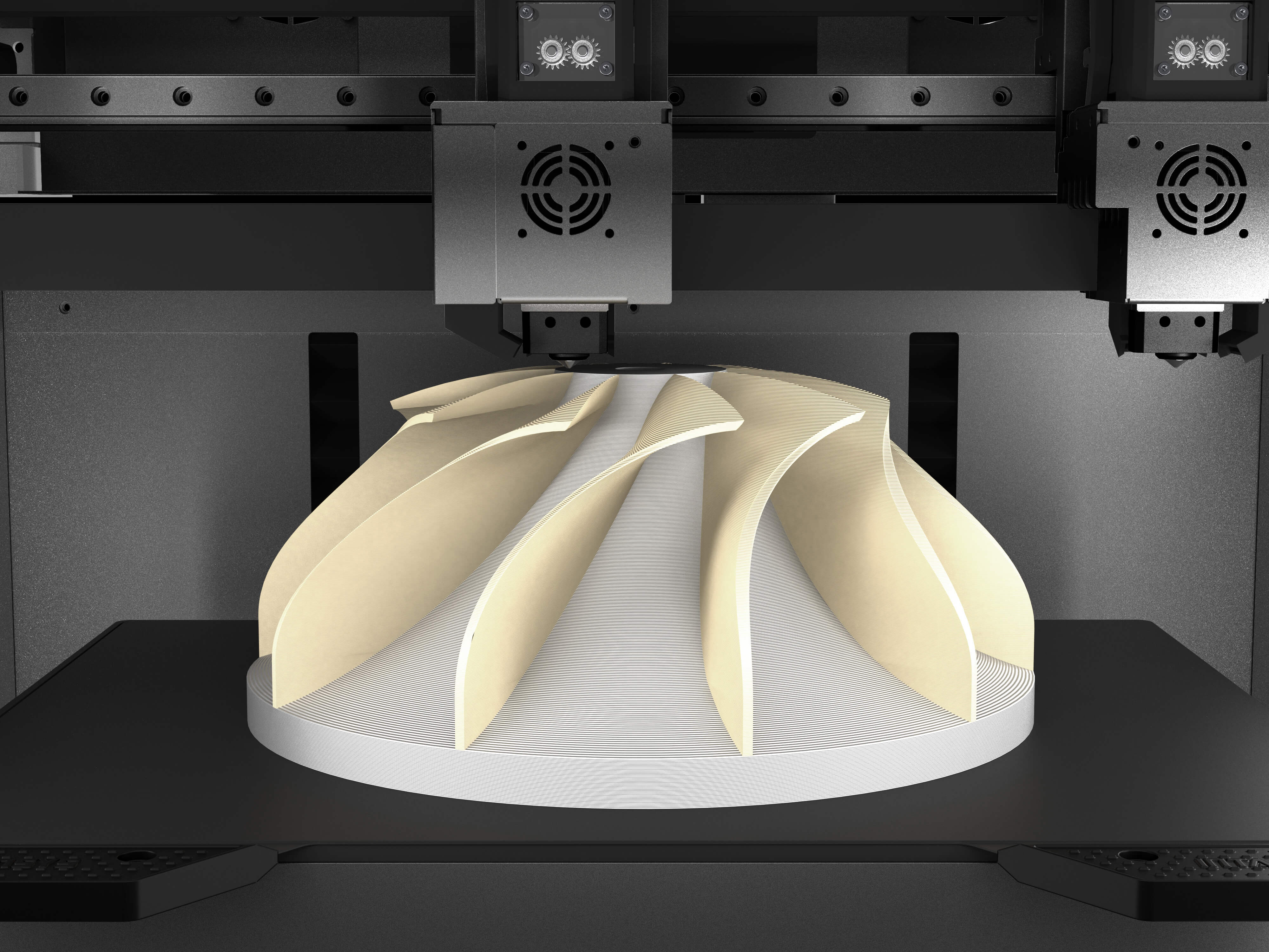

镜像/复制模式可提升批量打印效率

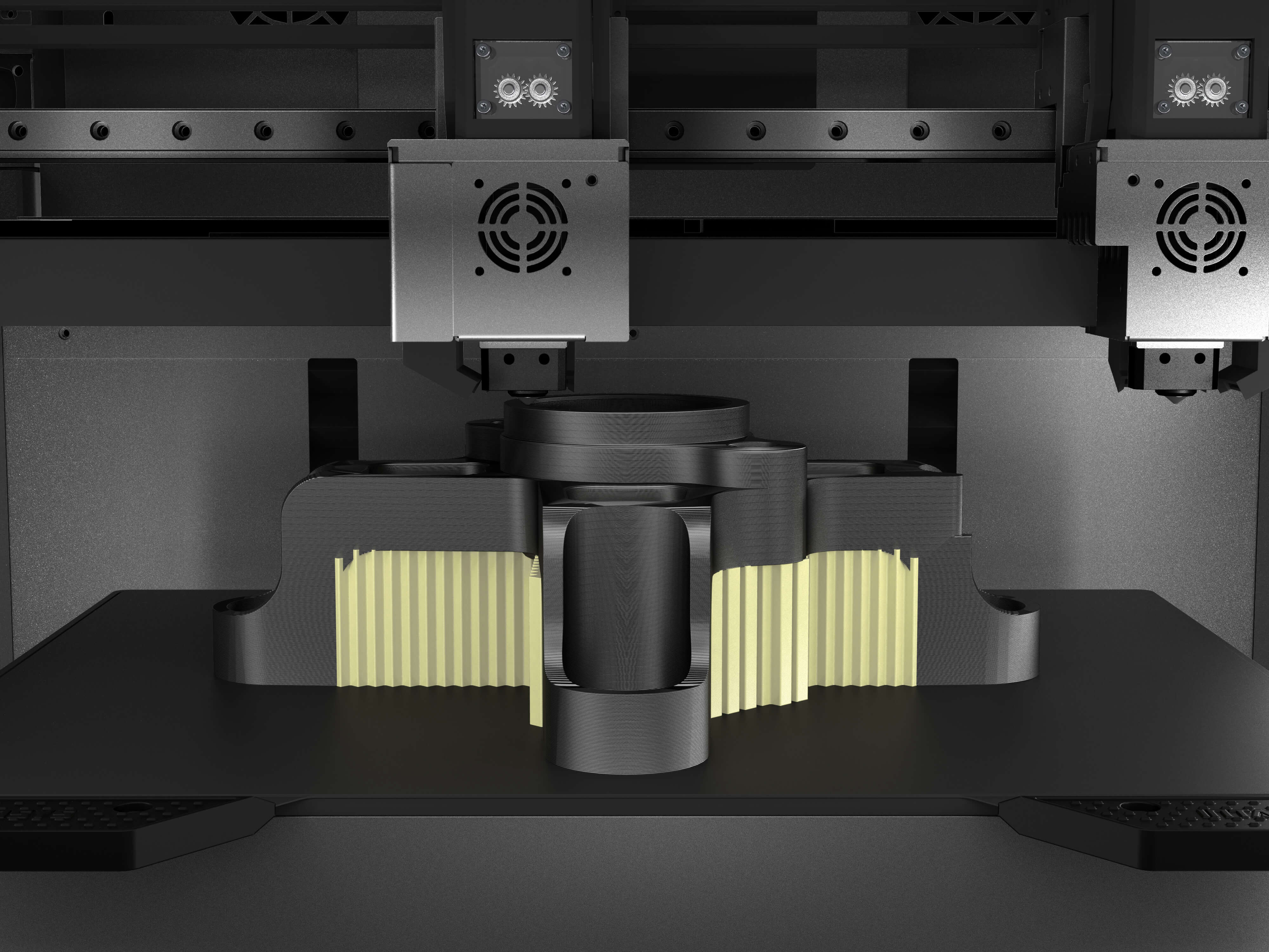

支撑模式打印可实现高质量复杂结构成型，提升成型件表面精度
双色打印带来更多设计灵感
为新手3D打印用户提供良好的使用体验，探索3D打印的无穷乐趣
全新平台自动调平最高记录平台100点平整度数据，打印时自动补偿Z向精度，保证打印质量

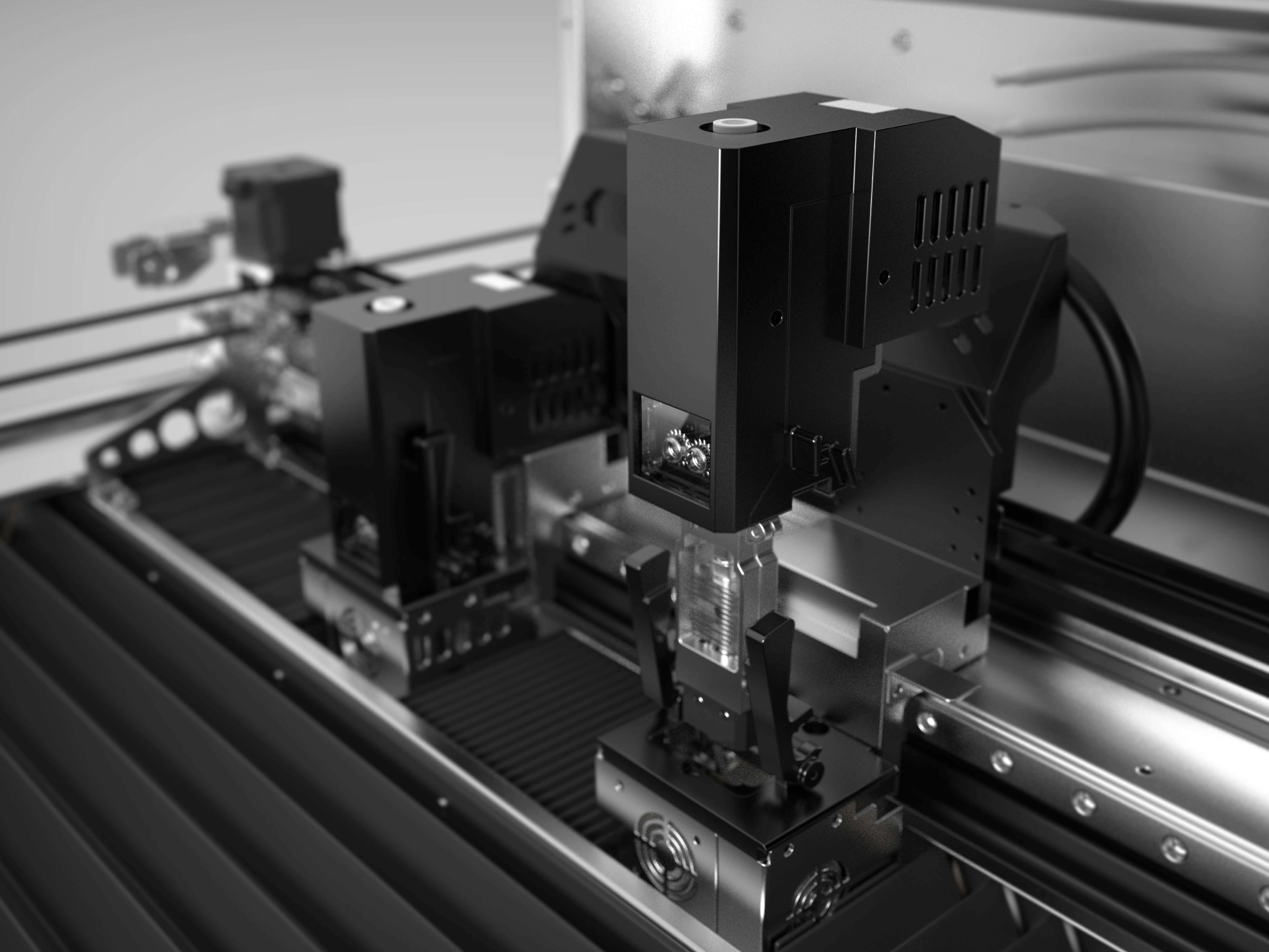

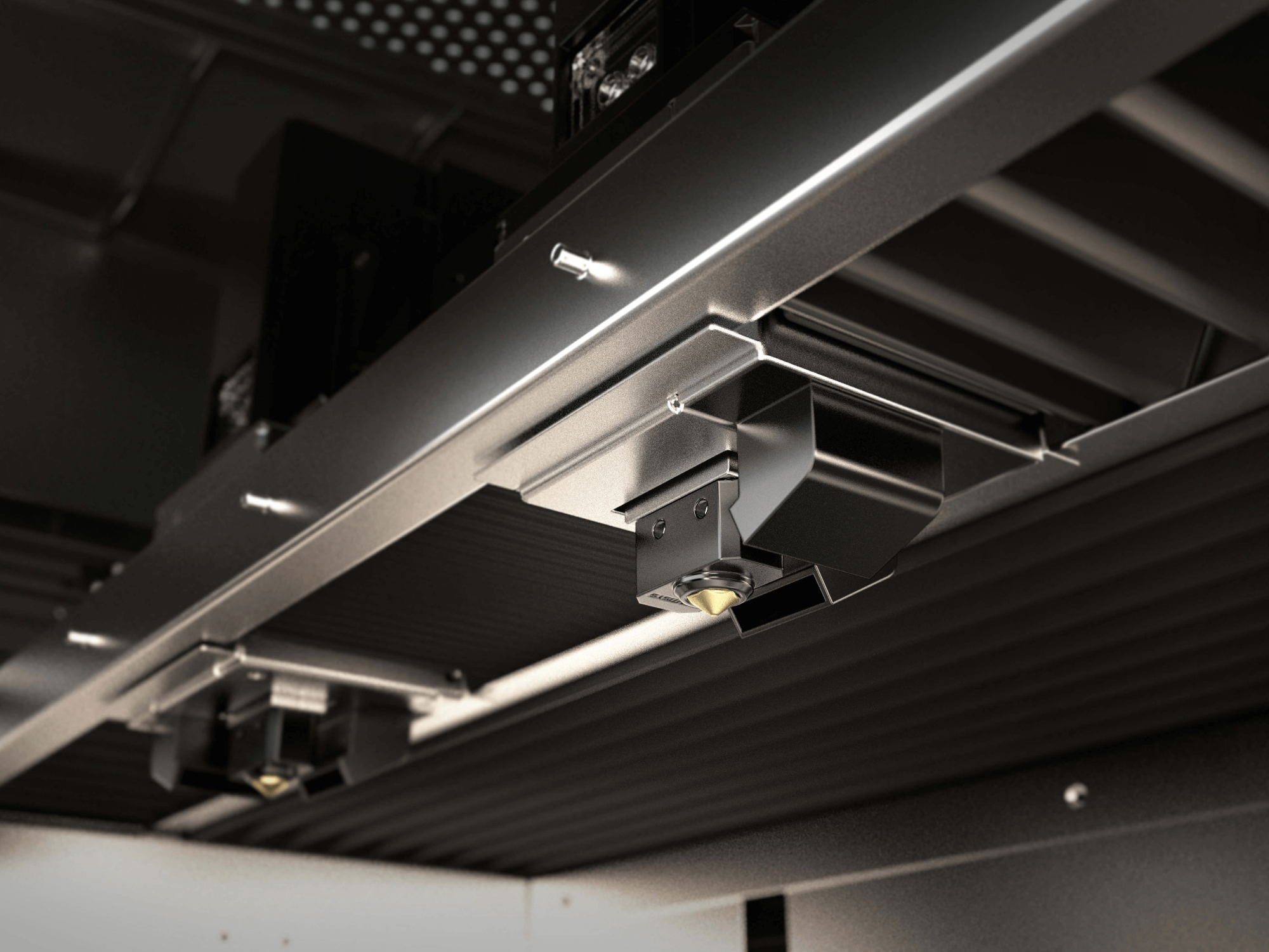

高温下双喷头高度差自动校准，告别塞尺等人工校准的繁琐操作，更精准更高效

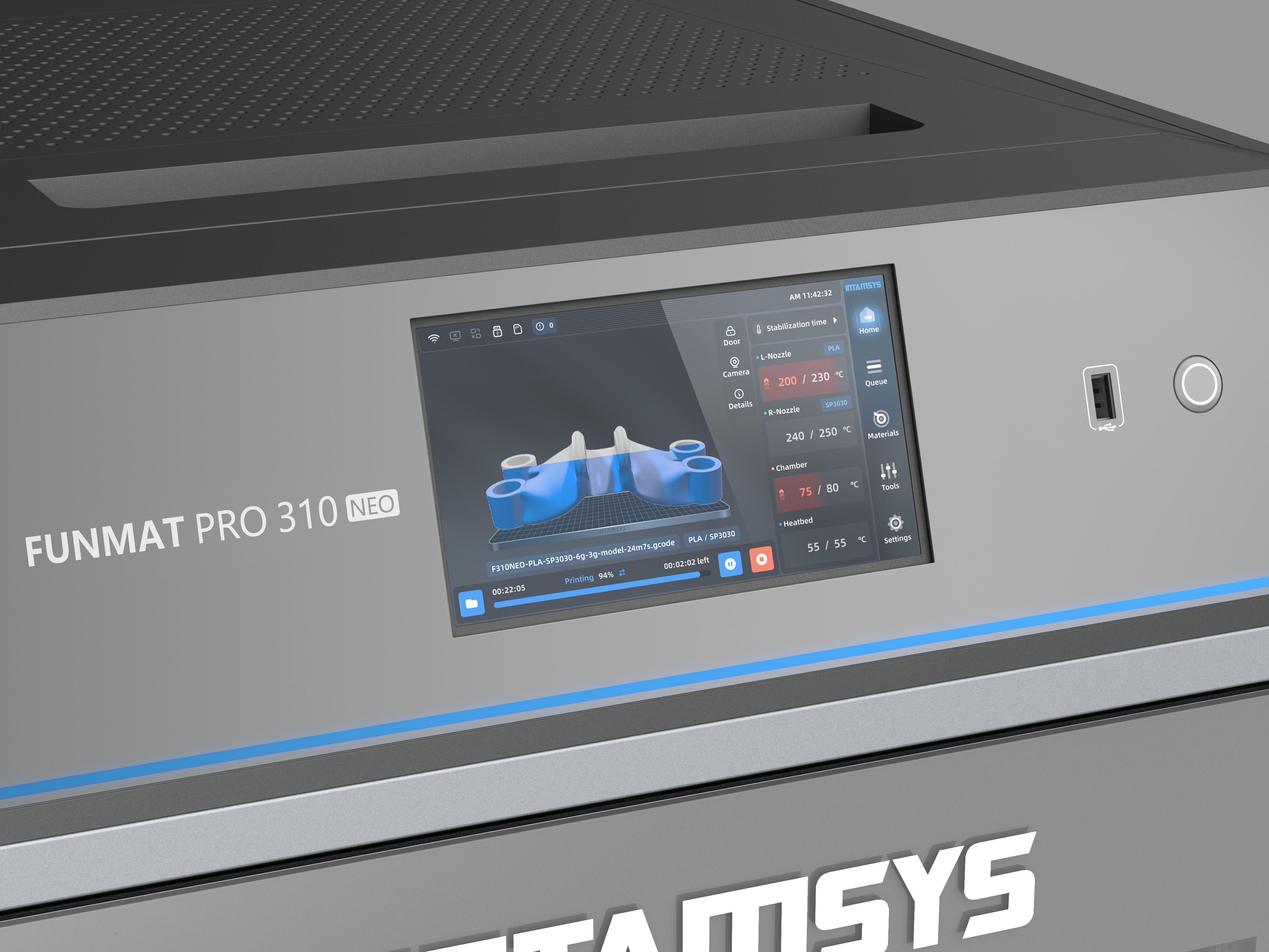

优秀的智能化交互设计，操作界面现在友好，带有任务队列自动化管理
即插即用，易于拆卸的模块化设计，便于维护

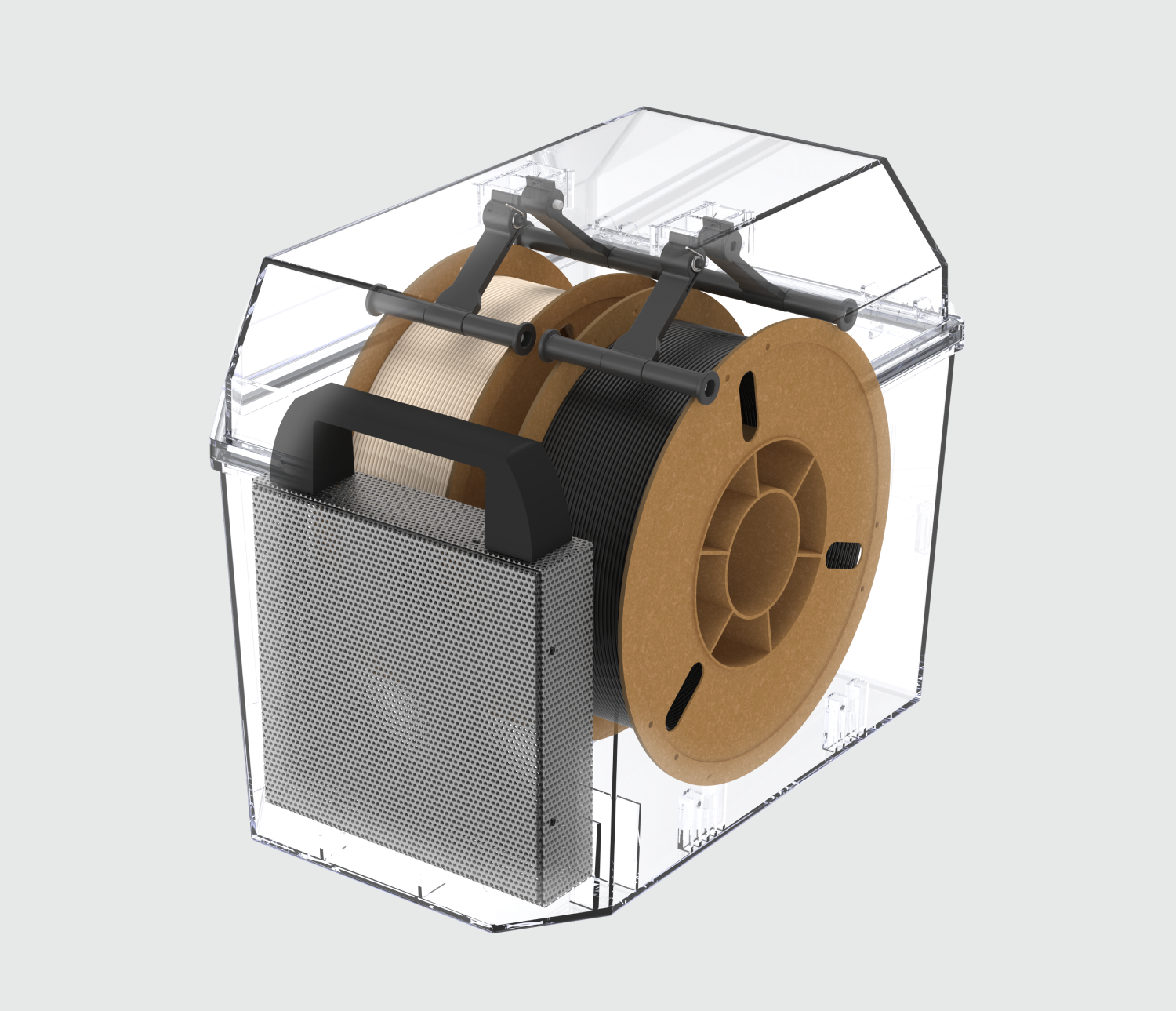

标配独立密封干燥料仓，搭配可重复使用的分子筛，无需反复烘干线材
Automated slicing for model design and repair. All-in-one collaborative additive manufacturing platform for online monitoring and print process optimization.
Explore More
实现与MES系统的无缝集成，助力企业升级工业4.0
人性化的设计，保证使用者的健康与安全

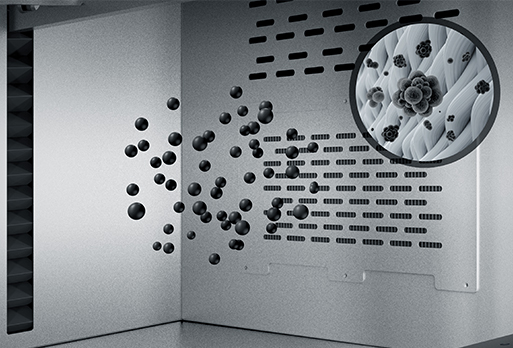

HEPA滤网和活性炭，有效降低打印时的有害物质排放，维护便捷，享受更舒适的体验。

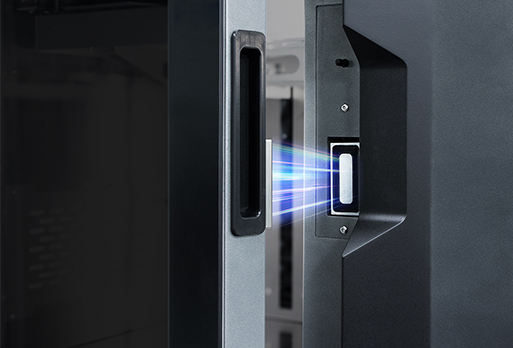

为3D打印机提供了额外的安全保护，确保了打印过程的顺利进行，有效避免误操作导致的人身危害。
优秀的隔热设计（加厚保温层，前门双层玻璃，顶部耐温风琴罩），避免打印机工作过程中发生烫伤。
|
3D Printers
|
FUNMAT PRO 310 NEO |
FUNMAT PRO 610HT |
FUNMAT PRO 410 |
FUNMAT HT |
FUNMAT PRO 310 |
|---|---|---|---|---|---|
|
BUILD SIZE
|
单喷头打印：305x260x260 mm；双喷头打印 ：260x260x260 mm |
610 × 508 × 508 mm |
305 x 305 x 406 mm |
260 x 260 x 260 mm |
Single Nozzle: |
|
MATERIALS
|
29
ABS+, ABS-GF, ABS-HS, ASA, HIPS, PA12-CF, PA6/66, PA6-CF, PC, PC/ABS, PC-FR, PC-PBT, PET-CF, PETG, PET-GF, PLA, PPA-CF, PPA-GF, PPS, PPS-CF, PPS-GF, PVA, SP3030, SP3050, SP5010, TPU95A, KIMYA ABS-ESD, BASF PC/ABS-FR, WANHUA PA12 |
36
PEEK, PEEK-CF, PEEK-GF, PEI 1010, PEI 9085, PEKK, PET-CF, PET-GF, PPA-CF, PPA-GF, ABS, ABS+, VICTREX AM™ 200 FIL, ASA, BASF ULTRAFUSE® PPSU, CONVESTRO PA6/66-GF20-FR, HIPS, PA12-CF, PA6/66, PA6-CF, PC, PC/ABS, PC-FR, PLA, PPS, PPSU, PVA, SP3030, SP3050, SP5000, SP5010, SP5040, SP5080, WANHUA PA12 |
30
ABS, ABS+, KIMYA ABS-ESD, VICTREX AMTM 200FIL, VICTREX AMTM450 FIL, ASA, CONVESTRO PA6/66-GF20-FR, HIPS, PA12-CF, PA6/66, PA6-CF, PC, BASF ULTRAFUSE® PC/ABS FR, PC/ABS, PC-FR, PC-PBT, PEEK, PEEK-CF, PEEK-GF, PEKK, PLA, PPA-CF, PPA-GF, PPS, PVA, SP3030, SP3050, SP5000, SP5010, WANHUA PA12 |
14
PEEK, PEEK-CF, PEEK-GF, PEKK, ABS, PC, PPA-CF, PPA-GF, PPS, PA12-CF, PA6/66, PA6-CF, ASA, PLA |
16
PA12-CF, PA6/66,PA6-CF,WANHUA PA12, PC, PC/ABS, ABS+, ABS, KIMYA ABS-ESD, ASA, BASFPC/ABS-FR, HIPS, PLA, PVA, SP3030, SP3050 |
|
PRINTER DIMENSIONS/
WEIGHT |
整体尺寸: 700x655x700 mm 整体重量 : 80 kg |
Overall Dimensions: 1710 x 1425 x 2080 mm With lighthouse: 1710 x 1425 x 2350 mm Overall Weight: 1450 kg |
Overall Dimensions: 728 x 684 x 1480 mm Overall Weight: 230kg |
Overall Dimensions: 543 x 501 x 645 mm Overall Weight : 63 Kg |
Overall Dimensions: 700 x 655 x 700 mm Overall Weight: 80 kg |
BROCHURE |
Download |
Download |
Download |
Download |
Download |
ALL FILAMENTS
PA12-CF is a carbon fiber reinforced PA12 (nylon 12) consumable. Compared to PA6, it is less sensitive to moisture. The carbon fiber reinforcement significantly enhances stiffness, strength, and heat resistance, while providing excellent interlayer bonding.
Explore More
PC-ABS combines the strength of PC with the toughness of ABS, making it easier to print. It offers a low-gloss finish that hides layer lines and allows for printing functional prototypes and production parts with fine details and excellent surface quality.
Explore More
PC (polycarbonate) is a strong and transparent thermoplastic with characteristics of impact resistance, high rigidity, heat resistance, and flame retardance. INTAM™ PC's unique anti-warping feature makes it easier to print with dimensional stability, ideal for demanding production and prototype printing.
Explore More
